MIOS® Minimally Invasive Orthopaedic Solutions
Instrumenteigenschappen

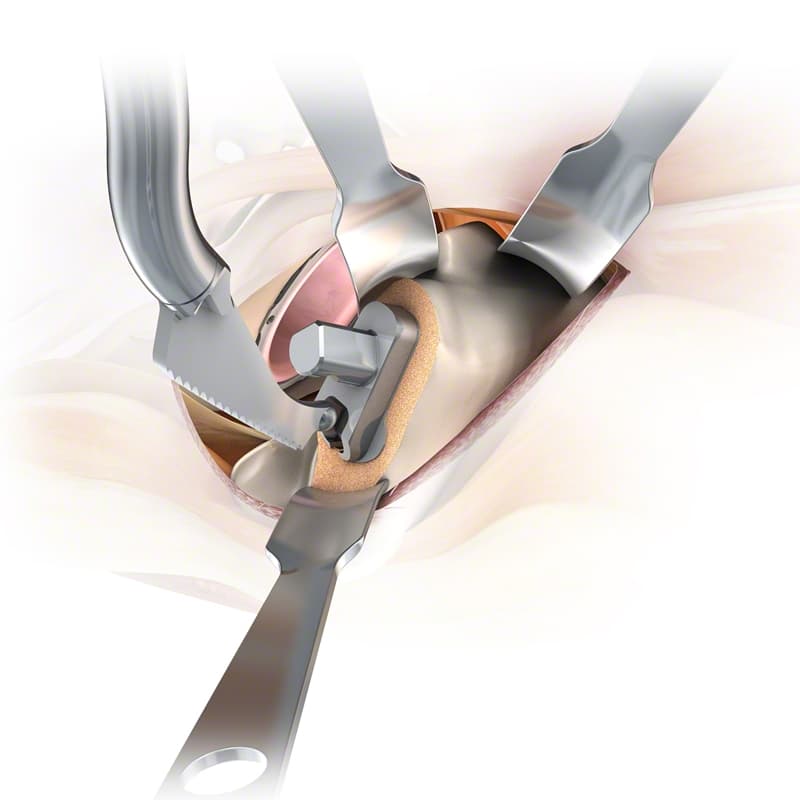

De MIOS® heupretractoren worden gekenmerkt door gestandaariseerde instrumentenlengtes en -vormen. De brede weefselsparende gebogen oppervlaktes verminderen de druk op het spierweefsel aanzienlijk. Een breed gamma retractoren met verschillende kromming en tip ondersteunen de chirurg in zijn specifieke operatietechniek.
Heupretractoren

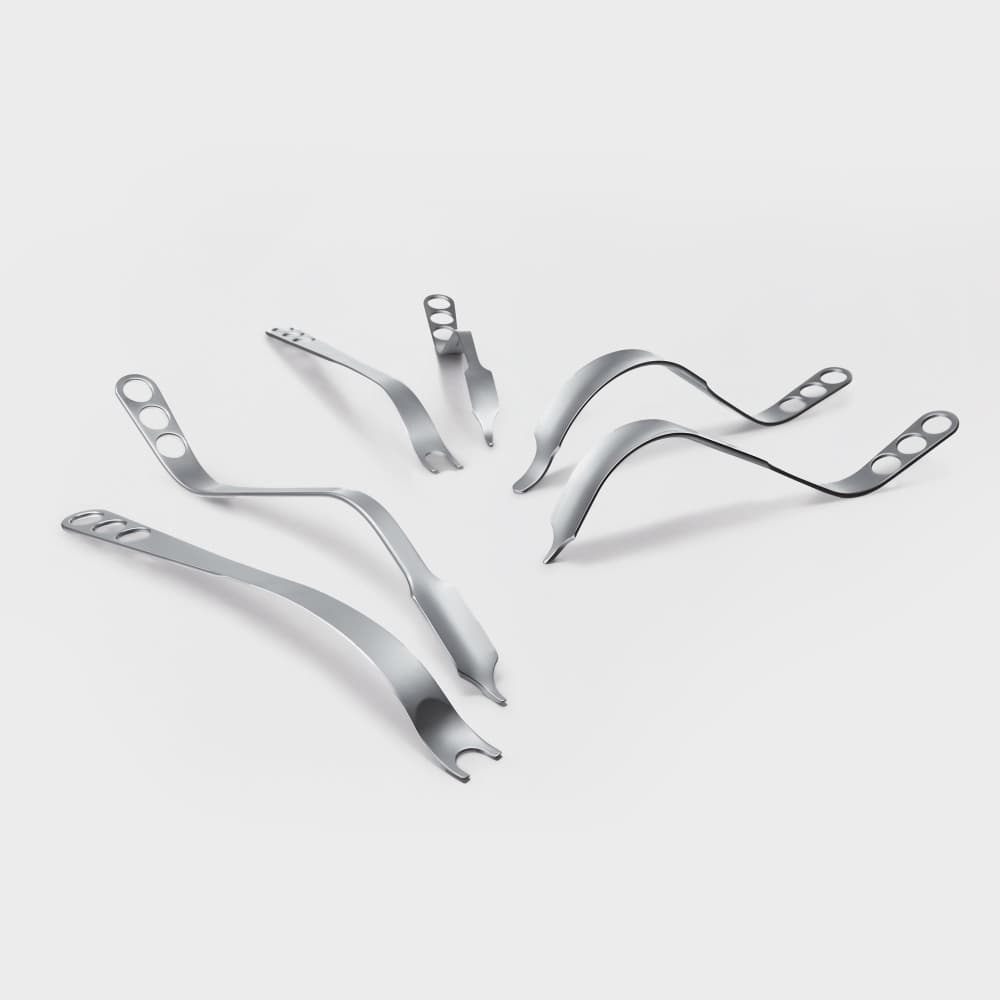

De MIOS® heupretractoren zijn beschikbaar in 30°, 45°, 60° en 90° kromming. Voor de dissectie van het acetabulum zijn de meer gebogen instrumenten primair. De minder gebogen retractoren zijn meer geschikt voor het vrijmaken van de femur. Deze worden eveneens gebruikt bij zwaardere patiënten. De verschillende retractortips zijn beschikbaar in aangepaste krommingen.
Implantaat specifieke instrumenten
MIOS® heupretractoren worden aangevuld door specifieke MIOS® instrumenten bestemd voor het B. Braun Aesculap endoprothesesysteem. Minimaal invasieve en standaardtechnieken zijn mogelijk dankzij een breed gamma aan gebogen handvaten voor acetabulum frezen, een gebogen Plasmacup® impactor, aangepaste handvaten voor B. Braun Aesculap heupsteelinstrumenten alsook instrumenten voor het OrthoPilot® heupnavigatiesysteem.
