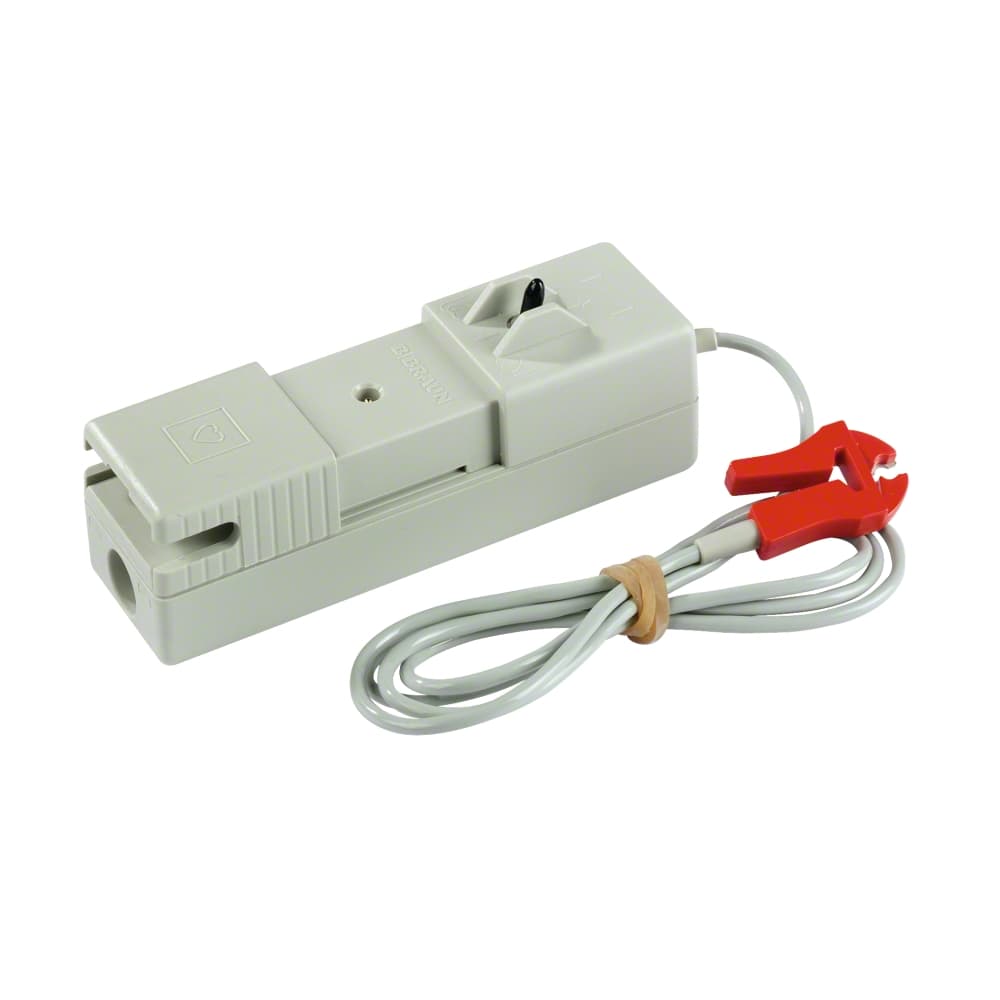

Certodyn
®
universeel adapter
Voor connectie met ECG monitor
Compatibel met alle veelgebruikte ECG patiëntenkabels
Mogelijkheid tot omschakelen van extracorporale naar intra-atriale ECG monitoring
Tijdens het inbrengen van de CVC katheter kan m.b.v. P-top variatie de kathetertip positie worden bepaald
