Certofix
®
Protect Quinto

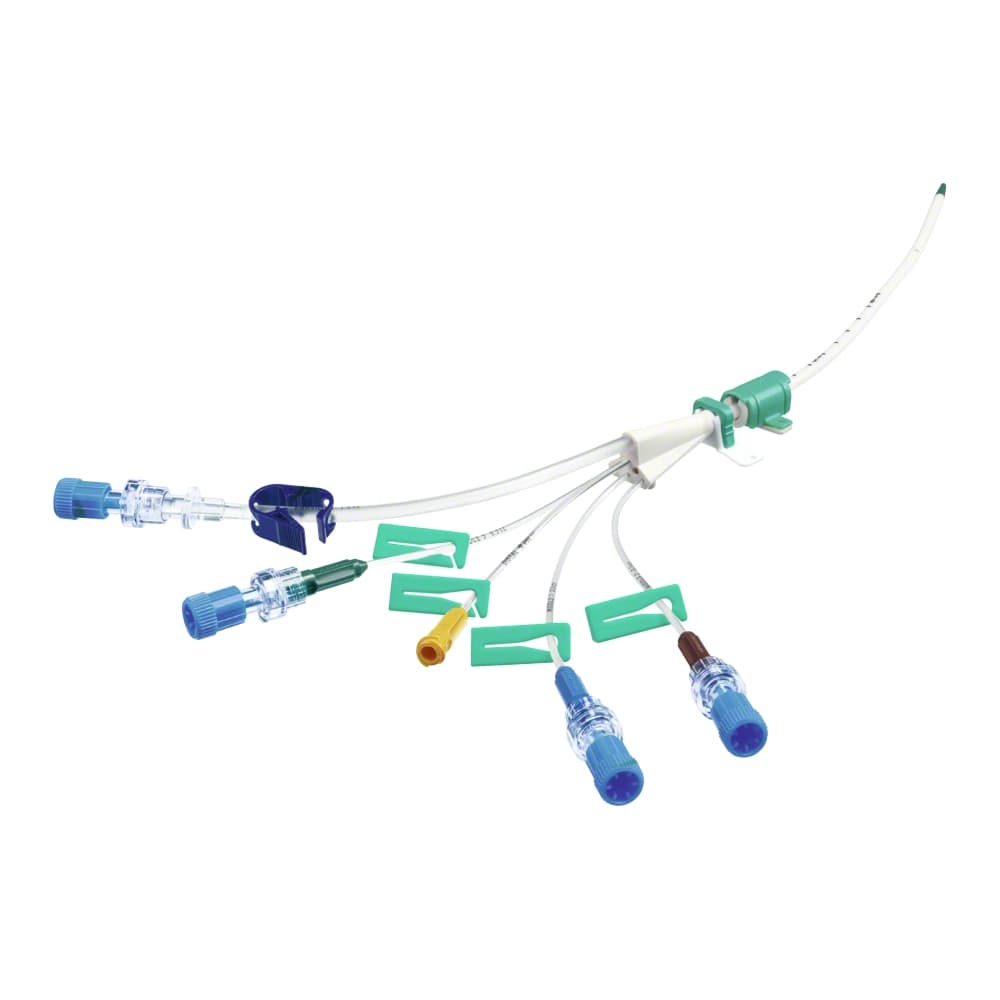

Antimicrobieel gemodificeerde 5-lumen high flow katheter voor katheterisatie van de vene cava volgens de Seldinger techniek, met de mogelijkheid van intra-atriale ECG
Set bestaat uit
Seldinger valvecanule = V
Certofix
®
knikvrije guide-wire met flexible J-tip
Omnifix
®
spuit 5ml Luer Lock
Cutfix
®
scalpel en dilatator
5-lumen 12F katheter, PUR soft kathetertip
Antimicrobieel gemodificeerd
X-ray zichtbaar
Lengte 20cm
Vijflumen: distaal 16G, middel 1, 2 en 3 18G, proximaal 12G
Kleurgecodeerde luer lock aansluiting en Safesite
®
ventiel
Geïntegreerde fixatievleugels voor optimale fixatie
Kabel voor intra-atriale ECG
Ook in custom-made set leverbaar
